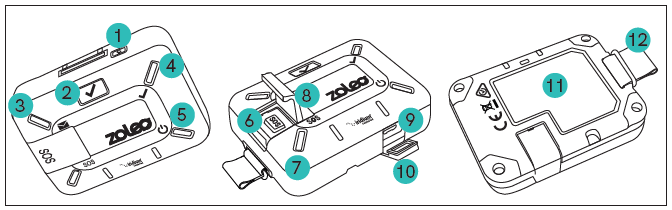

The diagram below provides the location of the power button, SOS button, and check-in button on the ZOLEO Communicator. The function of the LED lights on the front of the unit is also noted. For a complete list of the LED patterns please see the article here.
1. Power button |
6. SOS button |
11. Label with SOS instructions |
2. check-in button |
7. SOS LED |
12. Lanyard |
3. Message LED |
8. SOS cover |
|
4. Check-in LED |
9. USB port |
|
5. Power/Battery LED |
10 USB cover |
