The tables below summarize the LED status of the ZOLEO Communicator.

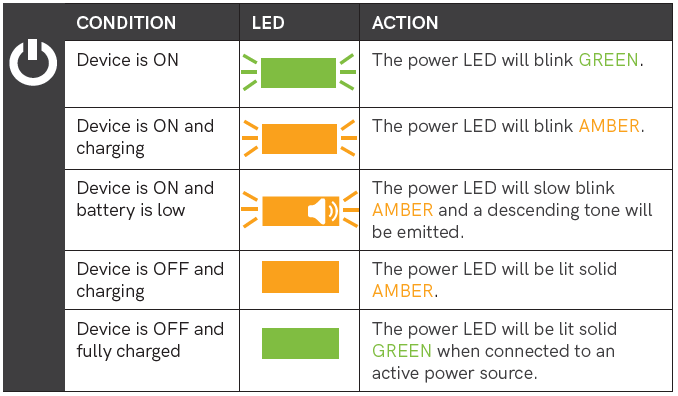

POWER

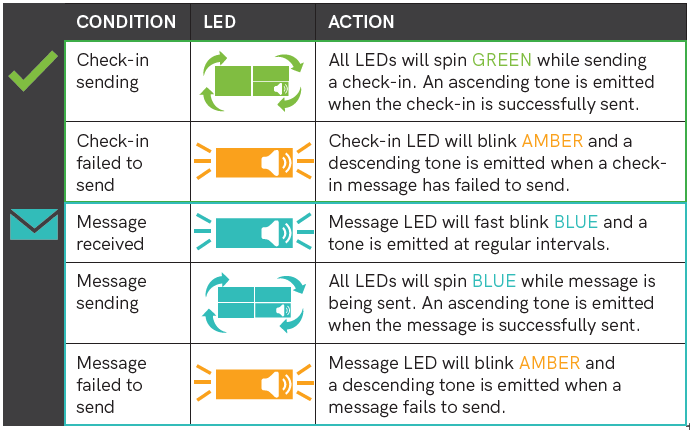

Messaging

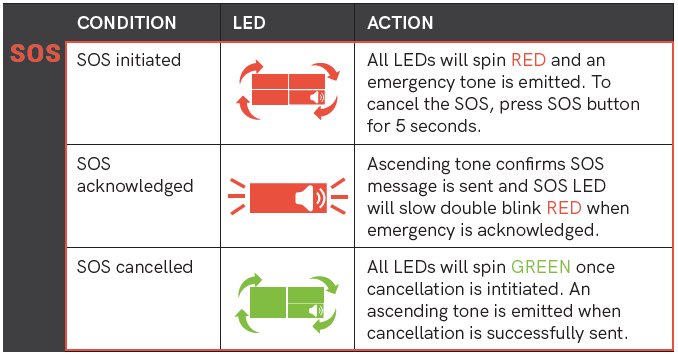

SOS Alerts

LED Summary Table

Feature	Category	Action
Power LED	Device is ON.	Power LED will blink GREEN.
Power LED	Device is ON and charging.	Power LED will blink AMBER.
Power LED	Device is ON and battery is low.	Power LED will slow blink AMBER and device will emit a descending tone.
Power LED	Device is OFF and charging.	Power LED will be lit solid AMBER.
Power LED	Device is OFF and fully charged.	Power LED will be lit solid GREEN when connected to a power source.
Check-in LED	Check-in sending	LEDs will spin GREEN while sending. When sent, an ascending tone is emitted.
Check-in LED	Check-in failed to send	Check-in LED will blink AMBER and descending tone is emitted.
Message LED	Message received	Message LED will fast blink BLUE and a reminder tone is emitted after 60 seconds.
Message LED	Message sending	LEDs will spin BLUE while sending. When sent, an ascending tone is emitted.
Message LED	Message failed to send	Message LED will blink AMBER and descending tone is emitted.
SOS LED	SOS initiated	LEDs will spin RED and an emergency tone is emitted. To cancel, press and hold the SOS button for 5 seconds.
SOS LED	SOS acknowledged	Ascending tone confirms SOS message is sent. SOS LED will slow double blink RED when emergency is acknowledged.
SOS LED	SOS canceled	LEDs will spin GREEN once cancellation is initiated. An ascending tone is emitted when cancellation is successfully sent.
ZOLEO Battery Level	Battery life	With the ZOLEO device powered on, quickly press and release the ZOLEO power button and the battery level will be expressed via the LEDs. Each LED represents the following: 4 LEDs will flash GREEN altogether if the battery level is 75%-100% 3 LEDs will flash GREEN at 50%-74% 2 LEDs will flash GREEN at 25%-49% 1 LED will flash GREEN at <25%
